Pass Box Dynamic, Mumbai, India

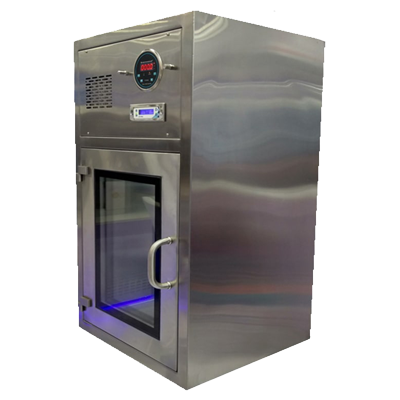

A Dynamic Pass Box plays a vital role in maintaining contamination-free environments by preventing the entry of pollutants into cleanrooms or controlled areas. It is a cubicle box installed between two classified zones that allows safe material transfer with the help of HEPA filtered air. The Clean Room Dynamic Pass Box is equipped with interlocked doors on both sides to ensure that the air remains unpolluted during the transfer process.

When the control button is pressed, the doors open and close automatically through a magnetic lock mechanism. Additionally, a UV light inside the Dynamic Pass Box helps regulate door operation — the door remains closed when the UV light is on and opens when it is turned off. This ensures enhanced safety and contamination control.

Krew Instruments, a trusted Dynamic Pass Box Manufacturer, designs and supplies high-quality Stainless Steel Dynamic Pass Boxes suitable for a wide range of cleanroom applications. As a Dynamic Pass Box Supplier and Exporter, Krew Instruments offers models that meet stringent GMP Certified Dynamic Pass Box standards, ensuring reliability and compliance in every setup.

Our Dynamic Pass Box for Pharma Industry and Dynamic Pass Box for Laboratories are engineered for precision and durability. These units work similarly to laminar flow systems, where clean, filtered air enters the pass box to block contaminants effectively.

The Dynamic Pass Box with HEPA Filter features a re-circulated filtration system and is built according to GMP specifications, maintaining high air quality and reducing cross-contamination risks. Depending on your setup, we also offer Wall Mounted Dynamic Pass Boxes designed for compact spaces and efficient workflow integration.

For organizations looking for superior performance competitive price Dynamic Pass Box Krew Instruments delivers dependable solutions tailored to meet the demanding standards of the pharmaceutical, biotechnology, and research industries

Dynamic Pass Box Design according to GMP Guidelines
Easy to clean and disinfect
Double-skin cabinet with doors and toughened glass
Cabinet fabricated in SS 304/316 structure
Re-circulated filtration system
Electro-magnetic interlocking system
HEPA filter H14 for supply air and exhaust air
EU-6 grade pre-filter with SS 304 flange
Air velocity: 0.45 ± 0.05 mps (90 ± 20 FPM) below six inches of grill
Magnehelic differential pressure gauge
Centrifugal type air blower with variable speed
Measuring system for pressure differential and volume flow or air velocity (if required)
Pre-installed white and UV germicidal light
Feather-touch controller for blower/light/pressure display
DOP port/atmospheric nozzles
Sound level minimum 65 dB
Power supply: Single phase 220V, 50 Hz

CONSTRUCTION FEATURES

Easy to clean
Easy to integrate
Advanced air tightness
Interlocking system
Heavy duty body
UV light

OPTIONAL FEATURES

It is a rectangular compartment with two doors at its extremes.
The doors have glass viewing windows to see the material kept for transfer.
One door opens into the cleanroom and the other opens into the adjoining room.
Both doors are electrically interlocked, allowing only one door to open at a time.
It restricts direct airflow between the cleanroom and the other room.
It reduces the need to open the cleanroom door frequently for material transfer.
It helps achieve material transfer without compromising the cleanliness level of the cleanroom.
The Dynamic Pass Box is specially designed and fitted with a HEPA filter.
The Dynamic Pass Box acts as a pressure chamber, allowing only clean air to enter the cleanroom while maintaining cleanliness levels.

FUNCTIONING

Digital Pressure Gauge with Alarm Hour Meter.

Why Choose a Dynamic Pass Box from Krew Instruments?

Krew Instruments is the preferred choice for a Dynamic Pass Box due to a combination of compliance, engineering, and support:

Contamination Control & Safety : Provides a vital role in maintaining contamination-free environments using HEPA filtered air and a re-circulated filtration system, effectively blocking pollutants and reducing cross-contamination risks.
Precision Engineering & Compliance: As a trusted manufacturer and supplier, Krew offers Stainless Steel units that meet stringent GMP Certified standards, ensuring reliability for the pharma and research industries.
Advanced Features : Equipped with interlocked doors and a magnetic lock, a UV light for enhanced safety, and options like Wall Mounted designs for efficient workflow.
Superior Value : Delivers superior performance and durability at a competitive price Dynamic Pass Box, offering a dependable, long-term solution.
Dedicated Service : Purchasers benefit from reliable on-time service and responsive customer support assistance, ensuring smooth operation and maintenance.
